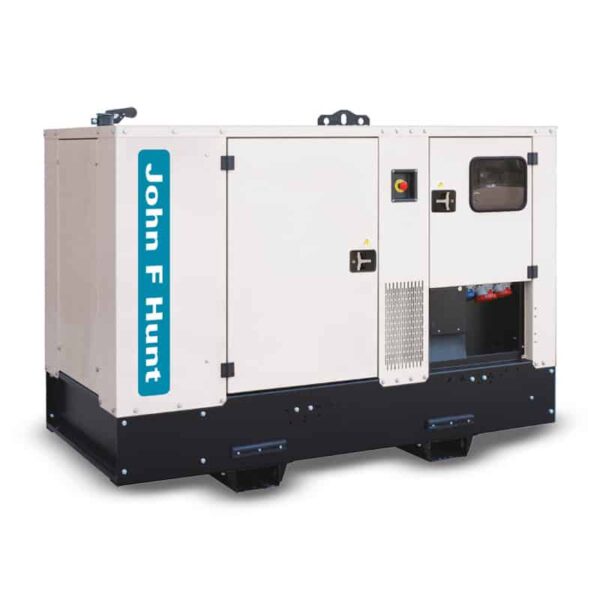

100 kVA Silenced Generators

Product Details

Our 100kVA silenced generators are built to John F Hunt specification to ensure industry leading performance. Designed for the rental market, they are tough & ultra-reliable. Fitted with Deep Sea panels, they offer a wide range of settings to suit all applications. They are simple to use & with all the features our customers require.
Download Spec sheet (100kVA)

Product Description

STANDBY POWER kVA PRIME POWER kVA FUEL TANK CAPACITY FUEL (L/H) CONSUMPTION@ 50% FUEL (L/H) CONSUMPTION@ 75% FUEL (L/H) CONSUMPTION@ 100% dBA @ 7m SIZE L x W x H mm WEIGHT kg
110 100 185 11.40 17.10 22.80 66 2580 1130 1640 1835

Features

  • Hot dip galvanised sound attenuated enclosure.
  • Powder coated grey / white
  • Engine: Iveco / Kohler / Cummins / Perkins
  • Alternator: Mecc Alte / Leroy Somer
  • Bunded fuel tanks complete with 3 way valve
  • Central lift points & Forklift pockets – complete with rubber bumpers
  • 4 pole circuit breakers with variable earth leakage protection
  • Socket kits
  • Oil pressure & high coolant/water temperature sensor & shutdown
  • Deep sea control panels
  • Stainless steel / Teflon locks & handles, lockable canopy with common single keys
  • Sump oil vac extraction pumps
  • Battery isolators & battery chargers
  • Racor fuel filters
  • Generators from 100 kVA upwards are available to synchronise & load share
  • External contact autostart
  • Hardwire via copper bus bars (not available on 20 kVA)
  • Micro switch protection on bus bar (not available on 20 kVA)
  • Current transformer
  • 50/60 Hz switchable
  • Low Water & Oil level alarm
    Features
  • Option: Trailer mounted road tow from 20 -100 kva
  • Option: Generators from 100kVA upwards are available to synchronise & load share
