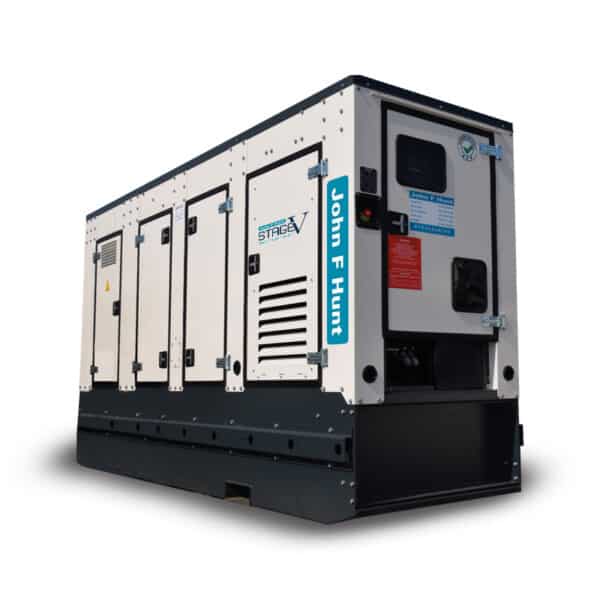

160kVA Stage V Generator

Model Number: FQ166F

Product Details

Stage V is an emission standard for non-road mobile machinery (NRMM). It’s a development of previous standards and requires controls, such as diesel particulate filters, to be applied to new machinery.

Stage V engines limit carbon monoxide, nitrogen oxides and hydrocarbons, whilst also reducing the mass of particulate matter (diesel soot) emitted into the atmosphere.

Download Spec sheet

Product Description

Standby Power kVA Continuous Power kVA Tank Capacity (Litre) Fuel Consumption per hour (Litre) 70% dBA @ 7m
165 150 150 22.2 55
Size (mm) Dry Weight (kg) Control Panel Socket Kit
L 3900, H 2300, W 1130 3400 Deep Sea 8610MKii 1 x 125a 3ph

Temporary power compliant with the latest NRMM Legislation

  • Fully compliant STAGE V engine
  • Ultra-silent compact canopy for extra noise supression
  • Full Synchronisation Capability
  • Patented Vsi technology
  • Hot dip galvanized enclosure
  • Powder coated
  • Forklift pockets - complete with rubber bumper protection
  • 4 Pole circuit breaker with earth leakage protection
  • 150 litre bunded fuel tank complete with 3 way valve
  • Emergency stop button
  • 50/60 Hz Switchable
  • Low water/Low oil level alarms
  • Battery isolator
  • Deep sea control panel 8610 MKii
  • Lockable canopy for extra security
  • RACOR water seperator filter
  • Copper busbar with microswitch protection over hardwire door
  • Motorised MCCB
  • Central lift point
  • Socket kit : 1 x 125a 3ph
  • Complete with REMOTE FLEET MONITORING option via DSE Webnet
  • Internal 400 Litre Adblue Tank
