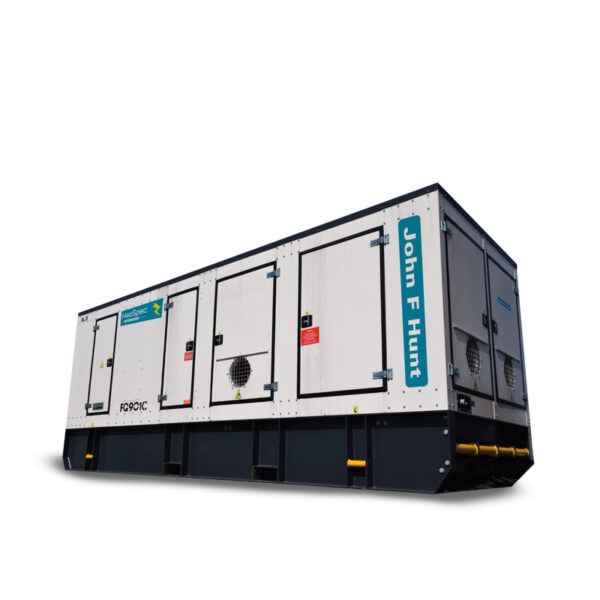

800kVA HazSpec Generator

Product Details

We stock a range of generators with a bespoke “HazSpec“ specification to combat the serious safety risk of operating diesel generators in hazardous or explosive environments.
Chalwyn valves and spark arrestors have been factory fitted to our John F Hunt Power specification Fusteq generators to create our exclusive “HazSpec“ units.
Download Spec sheet (40kVA)

Product Description

STANDBY POWER kVA PRIME POWER kVA ENGINE MAKE / TYPE GOVERNOR FUEL TANK CAPACITY FUEL (L/H) CONSUMPTION@ 50% FUEL (L/H) CONSUMPTION@ 75% FUEL (L/H) CONSUMPTION@ 100% dBA @ 7m SIZE L x W x H mm WEIGHT kg
880 800 CUMMINS Electronic 1700 86 122 162 61 5850 2280 2400 13400

Features

  • Hot dip galvanised sound attenuated enclosure
  • Bunded 1700 litre base fuel tank with 3 way valve
  • 4 Base lift points
  • 4 Pole circuit breaker with earth leakage Protection with on off switch
  • Deep sea 8610 load share control panel
  • Plastic coated locks and handles. Lockable canopy with common single key
  • Racor filter
  • 50/60 Hz switchable
  • Low water level alarm
  • Low oil level alarm
  • Cummins water separator filter
  • Sump oil vac pump
  • Battery isolator
  • Low oil pressure sensor
  • Water temperature sensor
  • CT for genset paralleling
  • Hardwire via copper busbar
  • Microswitch protection
  • Motorized MCCB
  • Alternator anti condensation heater
  • Battery charger
  • R731 3 phase regulator
  • Alternator Ref: LEROY SOMER / MECC ALTE
